QSK 19, 45, 60 Tier 2 Controls Harness

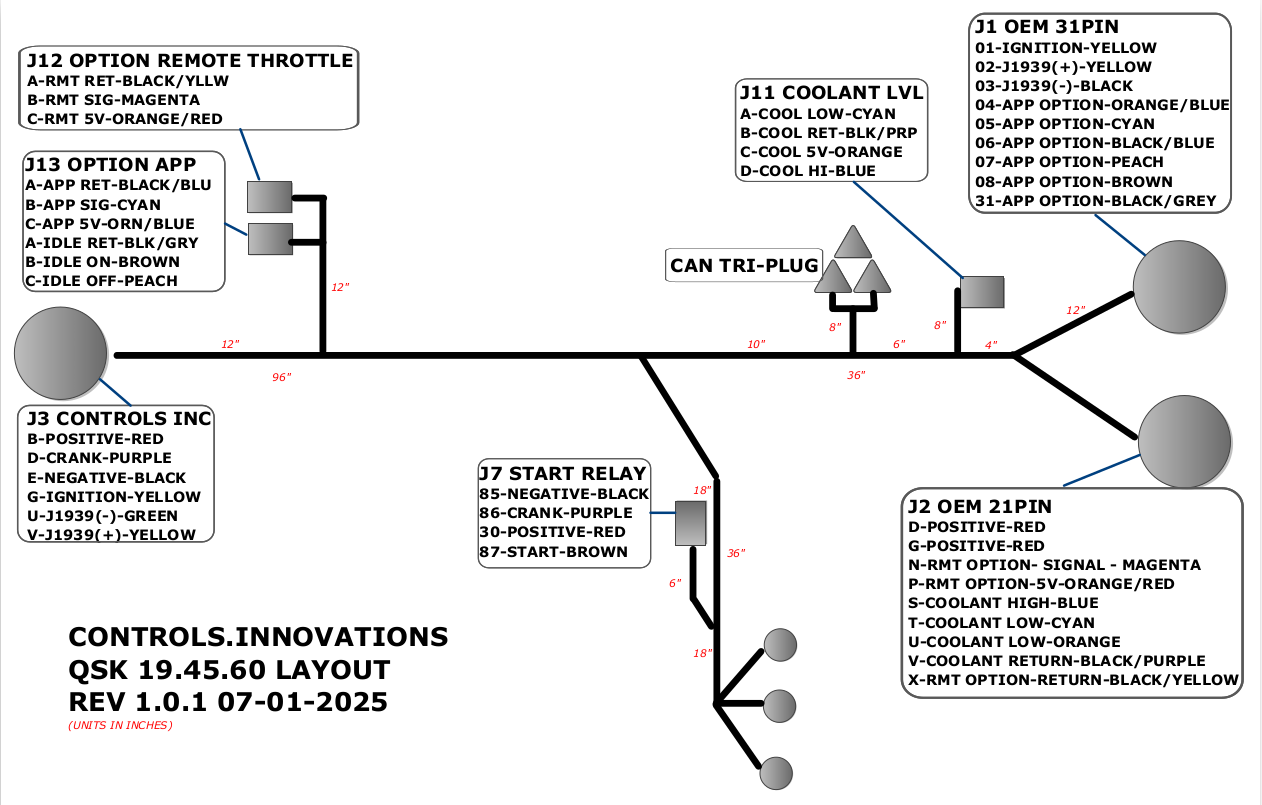

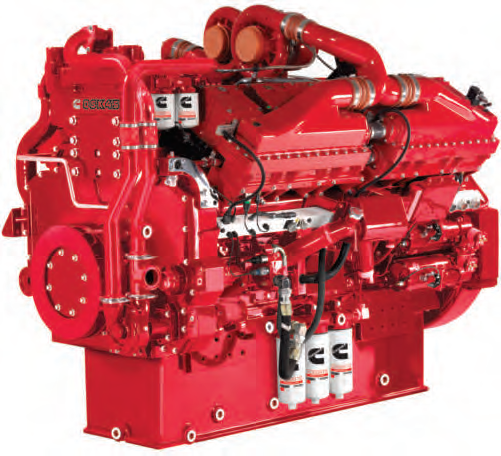

This Harness was designed to connect a QSK CM570 engine (Single ECM, Electric Fuel Pump, Mechanical Injectors) to a Controls Inc CX- Series Control Panel.

The Harness measures 10ft from control panel connector to customer connectors on the Engine, allowing plenty of reach for the control station.

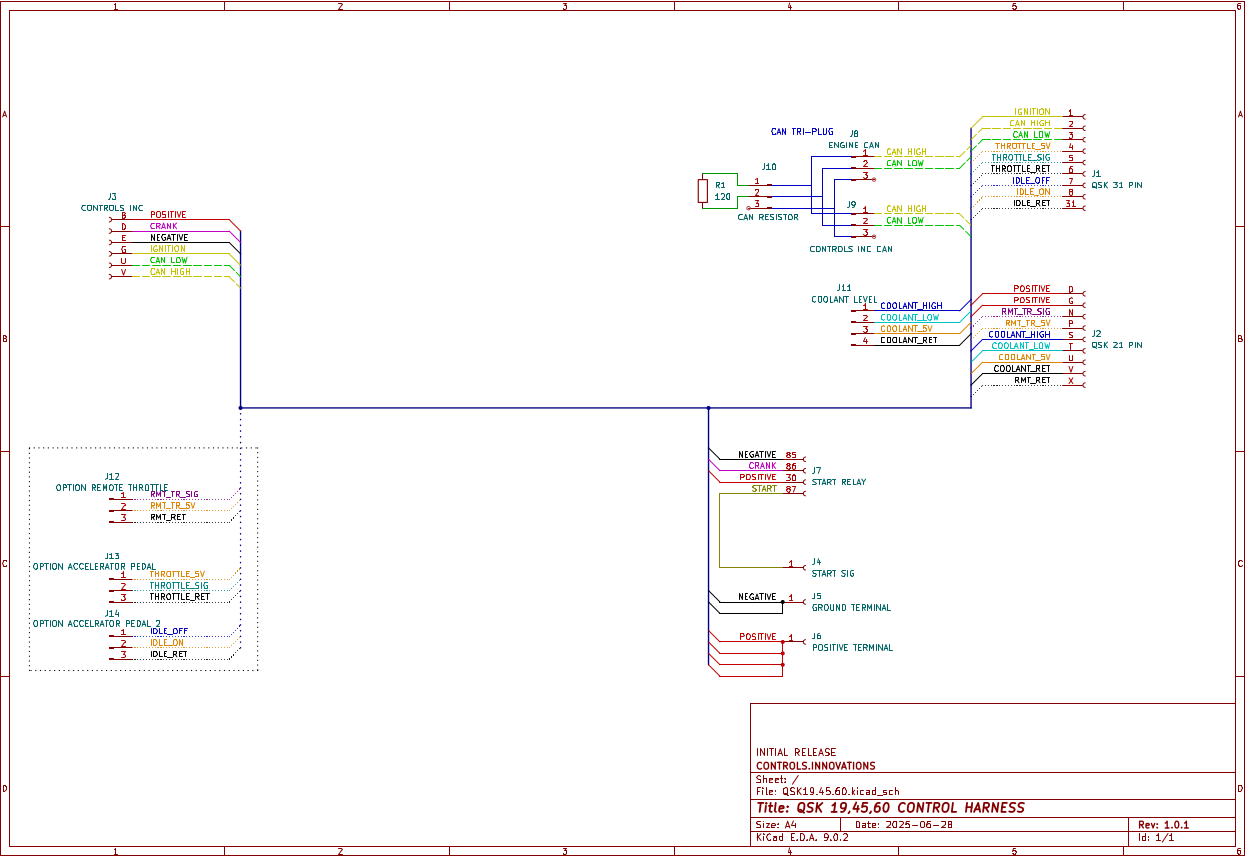

The CAN Tri-Plug is factory connected to the Public Databus of the engine ECU but some configurations need access to the Engine Databus. The Engine connection to the tri-plug can be removed and an alternate cable ran to the 3 pin CAN access point on the engine harness.

If you are in need of remote throttle, you can select the options to add which throttle is needed depending on what configurations you have enabled in the ECU.
